UC/UB Slice - Double Bolted Pairs, Horizontally Unsymmetrical

Revit Family Models

Revit Version: 2019

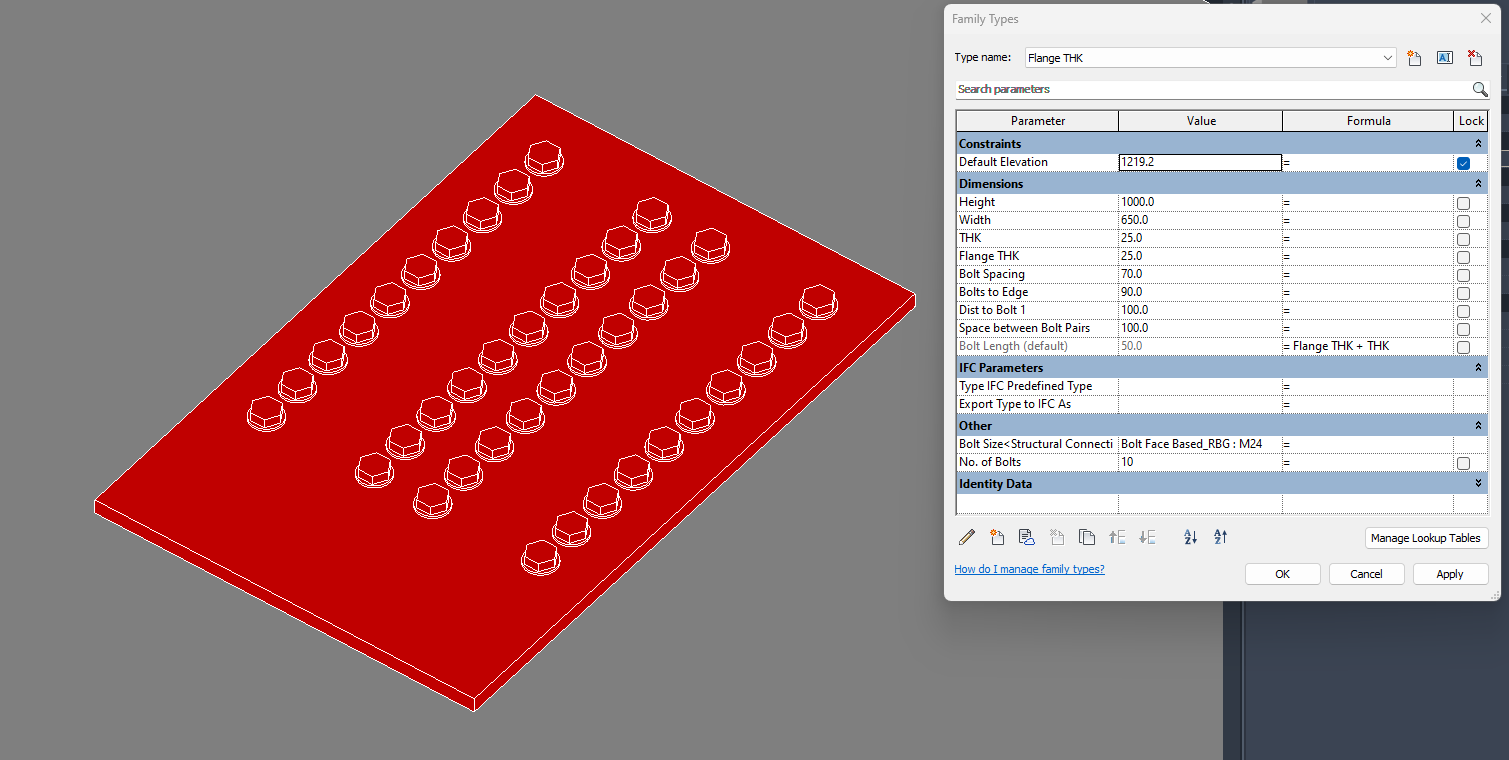

Type Parameters: Plate Dimensions(Height, Width, Thickness), Beam Flange Thickness, Bolt Parameters (Quantity, Size, Spacing, Positioning)

Instance Parameters: None
